Guided radar measurement
Time-of-Flight

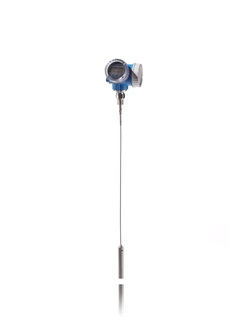

Levelflex FMP56

Levelflex FMP56 ©Endress+Hauser

Time-of-Flight measuring principle

Commissioning movie for Levelflex FMP5x guided radar and Micropilot FMR5x free space radar

Unique HistoROM data management concept for safe level measurement

Continuous adapting algorithms offering safe level measurement due to Multi-Echo Tracking

Levelflex FMP56 ©Endress+Hauser

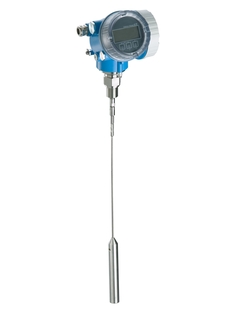

  • Levelflex FMP56
  • Levelflex FMP56

Economically efficient basis model for all level applications in bulk solids

Levelflex FMP56 is particularly designed for light-duty process conditions as they occur in silos and storage tanks for solids. FMP56 guided radar offers maximum reliability even in case of dusty atmosphere in narrow silos or in vessels with obstacles. Levelflex FMP56 is used for continuous level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.
